SUMMARY

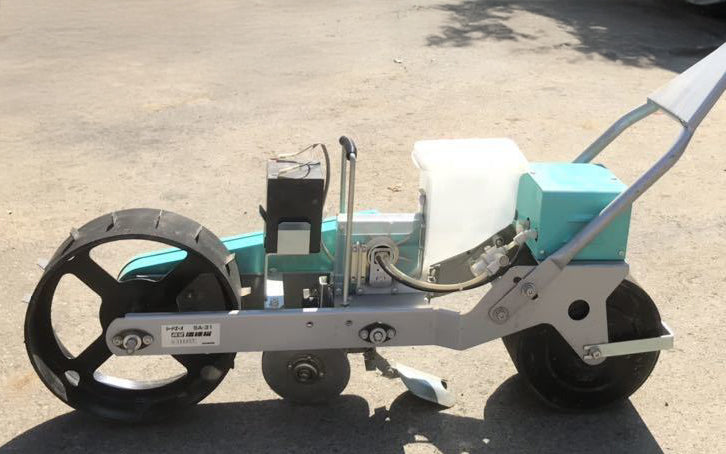

KEIBUNTECH Vacuum Vegetable Seeders will precisely sow vegetable seeds by vacuum method.
Three major advantages
1. Precise sowing
Vacuum pressure is used to adhere the desired number of seeds to the nozzle, and positive pressure is used to force them into the soil, preventing damage to the seeds, maintaining germination rates, and producing high-quality crops of uniform quality.
2. Reduction in thinning work
The desired number of seeds is sown accurately at the desired plant spacing, eliminating the need for thinning.
3. Savings on seed costs
Vacuum pressure is used to adhere the desired number of seeds to the nozzle, enabling precise seeding and eliminating wasteful seed usage.
FEATURES
- By adopting a slide handle, sowing work can be done easily even at corners in your farm.Effortless sowing, even in tight corners.
- The newly developed small seeding rotor makes the whole frame compact.
Easy storage and handling.
- Quick attachment / detachment of the sowing unit and removal of residual seeds!
- LED display to prevent over-discharge of the battery. It notifies you when to charge.Never run out of charge unexpectedly.
VIDEO
SPECIFICATIONS
| Model Name | SA-31 |
|---|---|
| The number of planting row | 1 |
| Sowing interval (mm) | 50 to 400 (sprocket exchange type) |
| Sowing hopper capacity (L) | 1.2 |
| Cultivating method | Stainless steel W discs |
| Motor output | DC12V 73W |
| Battery | DC12V |
| Fuse | 125V 5A |
| Applicable vegetable seeds | Spinach, radish, Japanese mustard spinach, turnip, etc. |
| Dimensions (mm) | 860 x 220 x 900 |
| Weight (kg) | 13.1 |
| Accessories |
8 x S3 nozzle 0.9-1 hole 4 x S3 nozzle 0.4-1 hole 1 set of sprockets (10TX1, 12TX1, 13TX1, 14TX1) 1 x Spanner 2 x Batteries 1 x Charger |
PLANTING DISTANCE ADJUSTMENT
By replacing the nozzle and sprocket, the row spacing can be adjusted to suit the crop being sown.
| Sprocket | Number of nozzles | |||
|---|---|---|---|---|
| Front wheel side | Intermediate shaft | 8 | 4 | 2 |
| 14 | 10 | 50mm | 100mm | 200mm |
| 13 | 10 | 55mm | 110mm | 220mm |
| 13 | 12 | 65mm | 130mm | 260mm |
| 12 | 12 | 70mm | 140mm | 280mm |
| 12 | 13 | 75mm | 150mm | 300mm |
| 10 | 13 | 90mm | 180mm | 360mm |
| 10 | 14 | 100mm | 200mm | 400mm |
LIST OF COMPATIBLE SEEDING NOZZLES
1 to 6 is the number of grains that can be adsorbed in one hole.
*The table below is for reference only. The actual seeds used may differ.
| Seed type |
Nozzle hole diameter |
Nozzle hole diameter |
|---|---|---|
| Daikon radish | 1 | - |
| Spinach | 1 | - |
| Turnips | 1 | - |
| Komatsuna | 1 | - |
| Chinese cabbage |
1 | - |
| Cabbage | 1 | - |
| Mizuna | 1 | - |
| Lettuce | 1～6 | 1～3 |
| Carrots | 1～5 | 1～3 |
| Spring onion | 1～4 | 1～2 |
